Game.SubsystemMagmaBlockBehavior

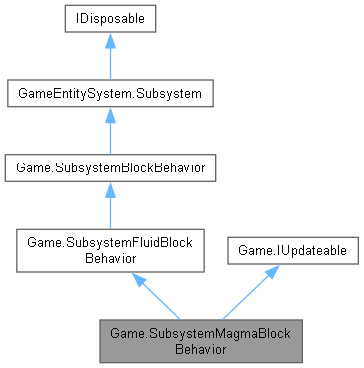

类 Game.SubsystemMagmaBlockBehavior 继承关系图:

Game.SubsystemMagmaBlockBehavior 的协作图:

Public 成员函数
	SubsystemMagmaBlockBehavior ()
virtual void	Update (float dt)
override void	OnBlockAdded (int value, int oldValue, int x, int y, int z)
override void	OnNeighborBlockChanged (int x, int y, int z, int neighborX, int neighborY, int neighborZ)
override bool	OnFluidInteract (int interactValue, int x, int y, int z, int fluidValue)
override void	Load (ValuesDictionary valuesDictionary)
void	ApplyMagmaNeighborhoodEffect (int x, int y, int z)
Public 成员函数 继承自 Game.SubsystemFluidBlockBehavior
	SubsystemFluidBlockBehavior (FluidBlock fluidBlock, bool generateSources)
virtual void	UpdateIsTop (int value, int x, int y, int z)
override void	OnBlockModified (int value, int oldValue, int x, int y, int z)
override void	OnItemHarvested (int x, int y, int z, int blockValue, ref BlockDropValue dropValue, ref int newBlockValue)
float?	GetSurfaceHeight (int x, int y, int z, out FluidBlock surfaceFluidBlock)
float?	GetSurfaceHeight (int x, int y, int z)
Vector2?	CalculateFlowSpeed (int x, int y, int z, out FluidBlock surfaceBlock, out float? surfaceHeight)
Vector2?	CalculateFlowSpeed (int x, int y, int z)
void	SpreadFluid ()
float?	CalculateDistanceToFluid (Vector3 p, int radius, bool flowingFluidOnly)
void	Set (int x, int y, int z, int value)
void	FlowTo (int x, int y, int z, int level)
int	LevelAtNearestFall (int x, int y, int z, int level, Dictionary< Point3, int > levels)
Public 成员函数 继承自 Game.SubsystemBlockBehavior
virtual void	OnChunkInitialized (TerrainChunk chunk)
virtual void	OnChunkDiscarding (TerrainChunk chunk)
virtual void	OnBlockGenerated (int value, int x, int y, int z, bool isLoaded)
virtual void	OnBlockRemoved (int value, int newValue, int x, int y, int z)
virtual void	OnBlockStartMoving (int value, int newValue, int x, int y, int z, MovingBlock movingBlock)
virtual void	OnBlockStopMoving (int value, int oldValue, int x, int y, int z, MovingBlock movingBlock)
virtual bool	OnUse (Ray3 ray, ComponentMiner componentMiner)
virtual bool	OnInteract (TerrainRaycastResult raycastResult, ComponentMiner componentMiner)
virtual bool	OnInteract (MovingBlocksRaycastResult movingBlocksRaycastResult, ComponentMiner componentMiner)
virtual bool	OnAim (Ray3 aim, ComponentMiner componentMiner, AimState state)
virtual bool	OnEditBlock (int x, int y, int z, int value, ComponentPlayer componentPlayer)
virtual bool	OnEditInventoryItem (IInventory inventory, int slotIndex, ComponentPlayer componentPlayer)
virtual void	OnItemPlaced (int x, int y, int z, ref BlockPlacementData placementData, int itemValue)
virtual void	OnCollide (CellFace cellFace, float velocity, ComponentBody componentBody)
virtual void	OnExplosion (int value, int x, int y, int z, float damage)
virtual void	OnFiredAsProjectile (Projectile projectile)
virtual bool	OnHitAsProjectile (CellFace? cellFace, ComponentBody componentBody, WorldItem worldItem)
virtual void	OnHitByProjectile (CellFace cellFace, WorldItem worldItem)
virtual void	OnHitByProjectile (MovingBlock movingBlock, WorldItem worldItem)
virtual int	GetProcessInventoryItemCapacity (IInventory inventory, int slotIndex, int value)
virtual void	ProcessInventoryItem (IInventory inventory, int slotIndex, int value, int count, int processCount, out int processedValue, out int processedCount)
virtual void	OnPickableGathered (Pickable pickable, ComponentPickableGatherer target, Vector3 distanceToTarget)
Public 成员函数 继承自 GameEntitySystem.Subsystem
virtual void	OnEntityAdded (Entity entity)
virtual void	OnEntityRemoved (Entity entity)
virtual void	Save (ValuesDictionary valuesDictionary)
virtual void	Dispose ()
virtual void	Initialize (Project project, ValuesDictionary valuesDictionary)

Public 属性
Random	m_random = new()
SubsystemFireBlockBehavior	m_subsystemFireBlockBehavior
SubsystemParticles	m_subsystemParticles
float	m_soundVolume
Public 属性 继承自 Game.SubsystemFluidBlockBehavior
FluidBlock	m_fluidBlock
Dictionary< Point3, bool >	m_toUpdate = []
Dictionary< Point3, int >	m_toSet = []
Dictionary< Point3, int >	m_visited = []
Dictionary< Point3, Vector2 >	m_fluidRandomFlowDirections = []
bool	m_generateSources

属性
override int[]	HandledBlocks [get]
UpdateOrder	UpdateOrder [get]
属性 继承自 Game.SubsystemFluidBlockBehavior
SubsystemTime	SubsystemTime [get, set]
SubsystemAudio	SubsystemAudio [get, set]
SubsystemAmbientSounds	SubsystemAmbientSounds [get, set]
属性 继承自 Game.SubsystemBlockBehavior
virtual int[]	HandledBlocks [get]
SubsystemTerrain	SubsystemTerrain [get, set]
属性 继承自 GameEntitySystem.Subsystem
Project	Project [get]
ValuesDictionary	ValuesDictionary [get]
属性 继承自 Game.IUpdateable
float	FloatUpdateOrder [get]

额外继承的成员函数
静态 Public 属性 继承自 Game.SubsystemFluidBlockBehavior
static Point2[]	m_sideNeighbors = [new(-1, 0), new(1, 0), new(0, -1), new(0, 1)]
包函数 继承自 GameEntitySystem.Subsystem
void	DisposeInternal ()

详细描述

在文件 SubsystemMagmaBlockBehavior.cs 第 5 行定义.

构造及析构函数说明

SubsystemMagmaBlockBehavior()

Game.SubsystemMagmaBlockBehavior.SubsystemMagmaBlockBehavior

(

)

在文件 SubsystemMagmaBlockBehavior.cs 第 18 行定义.

成员函数说明

ApplyMagmaNeighborhoodEffect()

void Game.SubsystemMagmaBlockBehavior.ApplyMagmaNeighborhoodEffect	(	int	x,
		int	y,
		int	z )

在文件 SubsystemMagmaBlockBehavior.cs 第 78 行定义.

函数调用图:

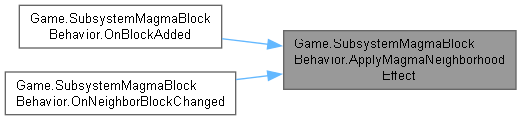

这是这个函数的调用关系图:

Load()

override void Game.SubsystemMagmaBlockBehavior.Load ( ValuesDictionary valuesDictionary )

virtual

重载 Game.SubsystemFluidBlockBehavior .

在文件 SubsystemMagmaBlockBehavior.cs 第 72 行定义.

OnBlockAdded()

override void Game.SubsystemMagmaBlockBehavior.OnBlockAdded ( int value, int oldValue, int x, int y, int z )

virtual

重载 Game.SubsystemFluidBlockBehavior .

在文件 SubsystemMagmaBlockBehavior.cs 第 38 行定义.

函数调用图:

OnFluidInteract()

override bool Game.SubsystemMagmaBlockBehavior.OnFluidInteract ( int interactValue, int x, int y, int z, int fluidValue )

virtual

重载 Game.SubsystemFluidBlockBehavior .

在文件 SubsystemMagmaBlockBehavior.cs 第 54 行定义.

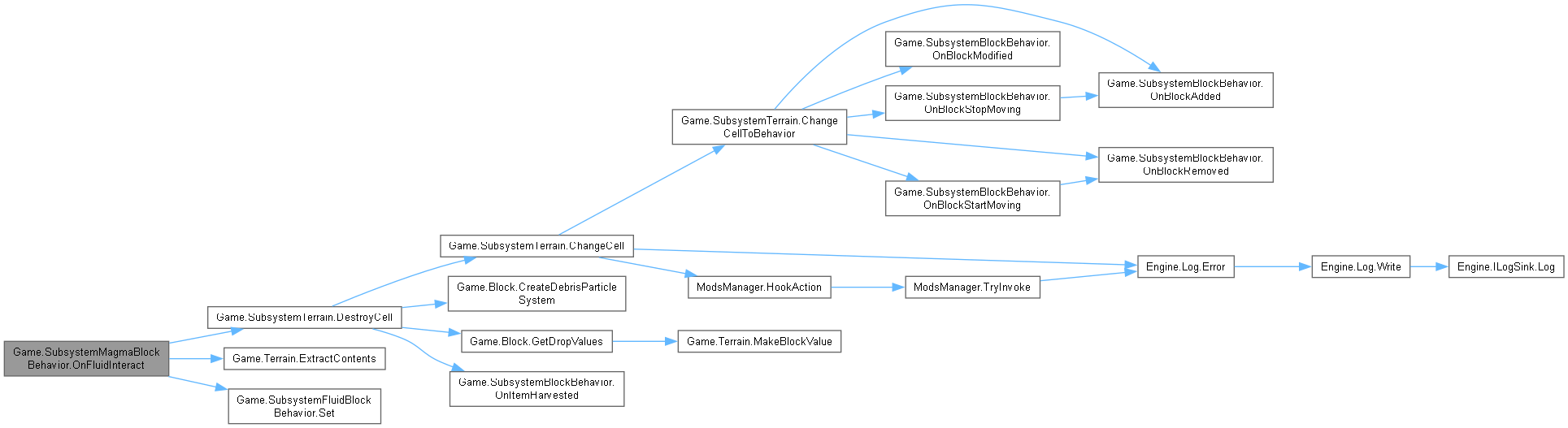

函数调用图:

OnNeighborBlockChanged()

override void Game.SubsystemMagmaBlockBehavior.OnNeighborBlockChanged ( int x, int y, int z, int neighborX, int neighborY, int neighborZ )

virtual

重载 Game.SubsystemFluidBlockBehavior .

在文件 SubsystemMagmaBlockBehavior.cs 第 49 行定义.

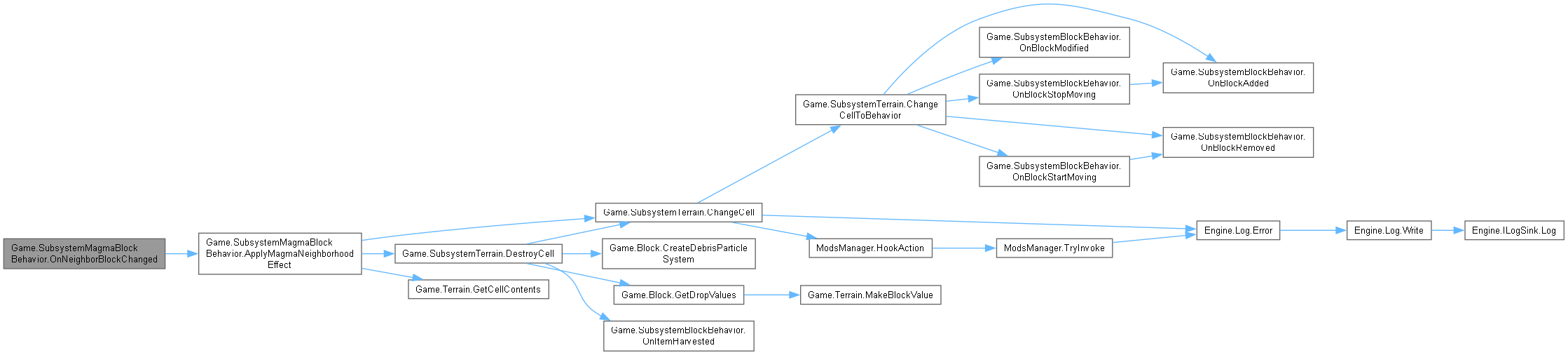

函数调用图:

Update()

virtual void Game.SubsystemMagmaBlockBehavior.Update ( float dt )

virtual

实现了 Game.IUpdateable.

在文件 SubsystemMagmaBlockBehavior.cs 第 20 行定义.

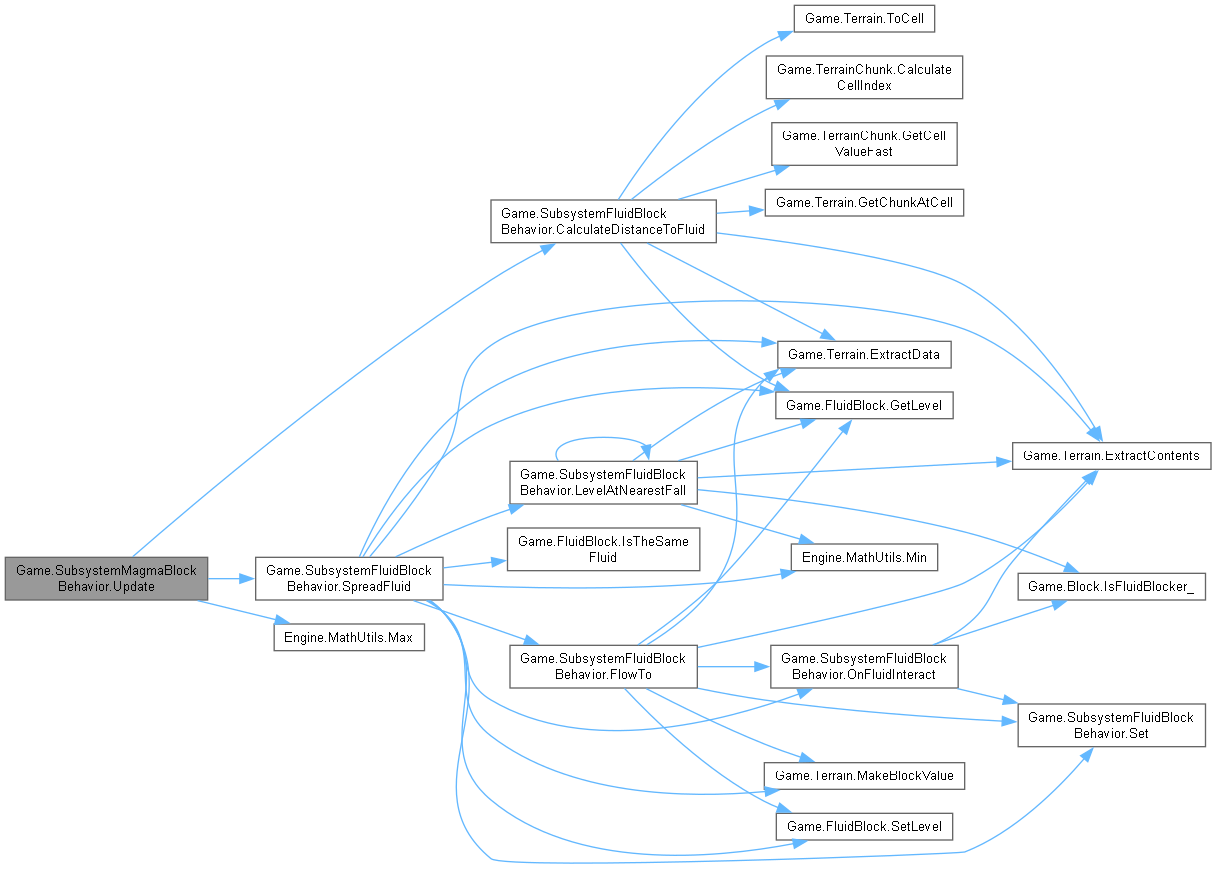

函数调用图:

类成员变量说明

m_random

Random Game.SubsystemMagmaBlockBehavior.m_random = new()

在文件 SubsystemMagmaBlockBehavior.cs 第 6 行定义.

m_soundVolume

float Game.SubsystemMagmaBlockBehavior.m_soundVolume

在文件 SubsystemMagmaBlockBehavior.cs 第 12 行定义.

m_subsystemFireBlockBehavior

SubsystemFireBlockBehavior Game.SubsystemMagmaBlockBehavior.m_subsystemFireBlockBehavior

在文件 SubsystemMagmaBlockBehavior.cs 第 8 行定义.

m_subsystemParticles

SubsystemParticles Game.SubsystemMagmaBlockBehavior.m_subsystemParticles

在文件 SubsystemMagmaBlockBehavior.cs 第 10 行定义.

属性说明

HandledBlocks

override int [] Game.SubsystemMagmaBlockBehavior.HandledBlocks

get

在文件 SubsystemMagmaBlockBehavior.cs 第 14 行定义.

UpdateOrder

UpdateOrder Game.SubsystemMagmaBlockBehavior.UpdateOrder

get

实现了 Game.IUpdateable.

在文件 SubsystemMagmaBlockBehavior.cs 第 16 行定义.

---

该类的文档由以下文件生成:

• E:/sc/doxygen/SurvivalcraftApi 1.8.2.3/Survivalcraft.Windows/Subsystem/SubsystemMagmaBlockBehavior.cs
