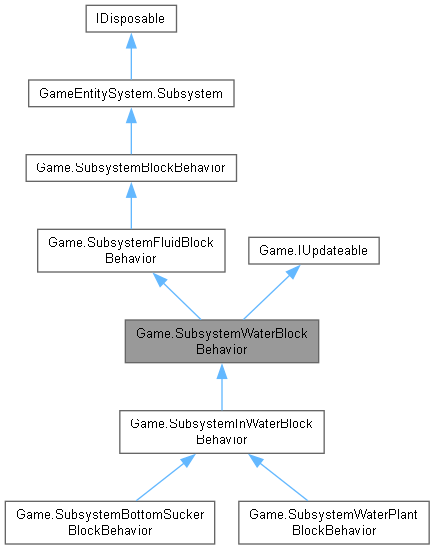

类 Game.SubsystemWaterBlockBehavior 继承关系图:

[图例]

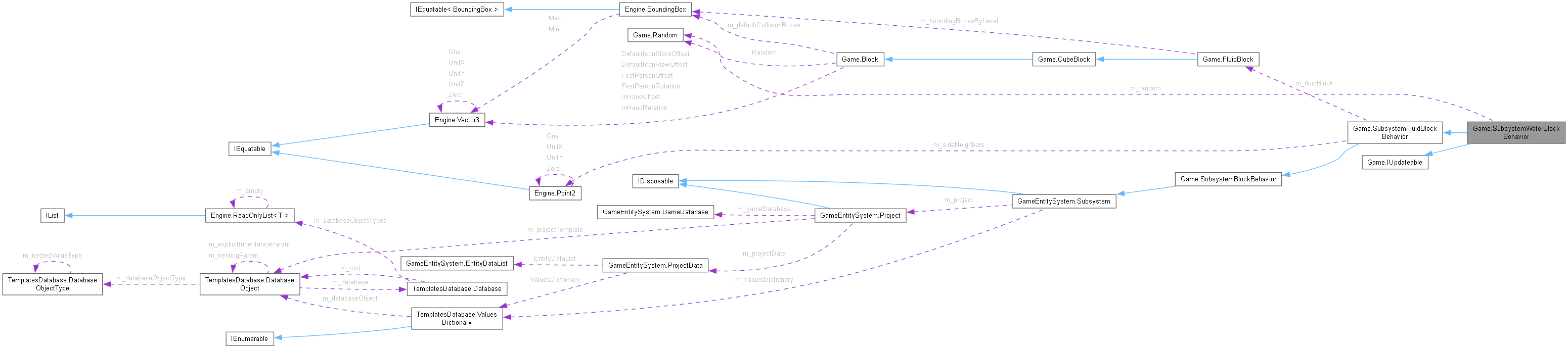

Game.SubsystemWaterBlockBehavior 的协作图:

[图例]

Public 成员函数
	SubsystemWaterBlockBehavior ()

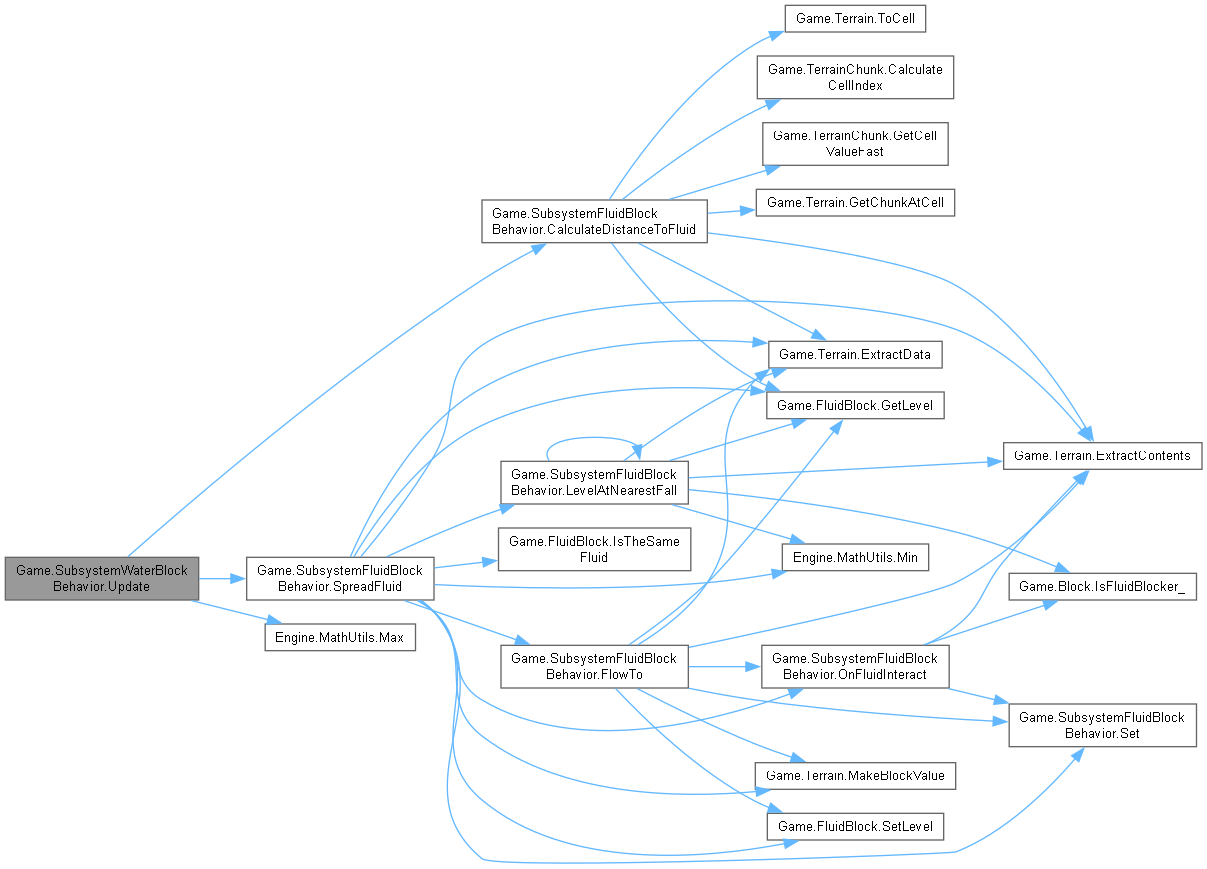

virtual void	Update (float dt)
override bool	OnFluidInteract (int interactValue, int x, int y, int z, int fluidValue)

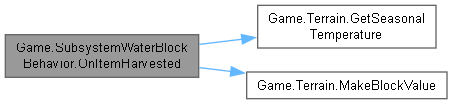

override void	OnItemHarvested (int x, int y, int z, int blockValue, ref BlockDropValue dropValue, ref int newBlockValue)
Public 成员函数继承自 Game.SubsystemFluidBlockBehavior
	SubsystemFluidBlockBehavior (FluidBlock fluidBlock, bool generateSources)
virtual void	UpdateIsTop (int value, int x, int y, int z)
override void	OnBlockAdded (int value, int oldValue, int x, int y, int z)
override void	OnBlockModified (int value, int oldValue, int x, int y, int z)
override void	OnNeighborBlockChanged (int x, int y, int z, int neighborX, int neighborY, int neighborZ)
float?	GetSurfaceHeight (int x, int y, int z, out FluidBlock surfaceFluidBlock)
float?	GetSurfaceHeight (int x, int y, int z)
Vector2?	CalculateFlowSpeed (int x, int y, int z, out FluidBlock surfaceBlock, out float? surfaceHeight)
Vector2?	CalculateFlowSpeed (int x, int y, int z)
override void	Load (ValuesDictionary valuesDictionary)
void	SpreadFluid ()
float?	CalculateDistanceToFluid (Vector3 p, int radius, bool flowingFluidOnly)
void	Set (int x, int y, int z, int value)
void	FlowTo (int x, int y, int z, int level)
int	LevelAtNearestFall (int x, int y, int z, int level, Dictionary< Point3, int > levels)
Public 成员函数继承自 Game.SubsystemBlockBehavior
virtual void	OnChunkInitialized (TerrainChunk chunk)
virtual void	OnChunkDiscarding (TerrainChunk chunk)
virtual void	OnBlockGenerated (int value, int x, int y, int z, bool isLoaded)
virtual void	OnBlockRemoved (int value, int newValue, int x, int y, int z)
virtual void	OnBlockStartMoving (int value, int newValue, int x, int y, int z, MovingBlock movingBlock)
virtual void	OnBlockStopMoving (int value, int oldValue, int x, int y, int z, MovingBlock movingBlock)
virtual bool	OnUse (Ray3 ray, ComponentMiner componentMiner)
virtual bool	OnInteract (TerrainRaycastResult raycastResult, ComponentMiner componentMiner)
virtual bool	OnInteract (MovingBlocksRaycastResult movingBlocksRaycastResult, ComponentMiner componentMiner)
virtual bool	OnAim (Ray3 aim, ComponentMiner componentMiner, AimState state)
virtual bool	OnEditBlock (int x, int y, int z, int value, ComponentPlayer componentPlayer)
virtual bool	OnEditInventoryItem (IInventory inventory, int slotIndex, ComponentPlayer componentPlayer)
virtual void	OnItemPlaced (int x, int y, int z, ref BlockPlacementData placementData, int itemValue)
virtual void	OnCollide (CellFace cellFace, float velocity, ComponentBody componentBody)
virtual void	OnExplosion (int value, int x, int y, int z, float damage)
virtual void	OnFiredAsProjectile (Projectile projectile)
virtual bool	OnHitAsProjectile (CellFace? cellFace, ComponentBody componentBody, WorldItem worldItem)
virtual void	OnHitByProjectile (CellFace cellFace, WorldItem worldItem)
virtual void	OnHitByProjectile (MovingBlock movingBlock, WorldItem worldItem)
virtual int	GetProcessInventoryItemCapacity (IInventory inventory, int slotIndex, int value)
virtual void	ProcessInventoryItem (IInventory inventory, int slotIndex, int value, int count, int processCount, out int processedValue, out int processedCount)
virtual void	OnPickableGathered (Pickable pickable, ComponentPickableGatherer target, Vector3 distanceToTarget)
Public 成员函数继承自 GameEntitySystem.Subsystem
virtual void	OnEntityAdded (Entity entity)
virtual void	OnEntityRemoved (Entity entity)
virtual void	Save (ValuesDictionary valuesDictionary)
virtual void	Dispose ()
virtual void	Initialize (Project project, ValuesDictionary valuesDictionary)

Public 属性
Random	m_random = new()
float	m_soundVolume
Public 属性继承自 Game.SubsystemFluidBlockBehavior
FluidBlock	m_fluidBlock
Dictionary< Point3, bool >	m_toUpdate = []
Dictionary< Point3, int >	m_toSet = []
Dictionary< Point3, int >	m_visited = []
Dictionary< Point3, Vector2 >	m_fluidRandomFlowDirections = []
bool	m_generateSources

属性
override int[]	HandledBlocks `[get]`
UpdateOrder	UpdateOrder `[get]`
属性继承自 Game.SubsystemFluidBlockBehavior
SubsystemTime	SubsystemTime `[get, set]`
SubsystemAudio	SubsystemAudio `[get, set]`
SubsystemAmbientSounds	SubsystemAmbientSounds `[get, set]`
属性继承自 Game.SubsystemBlockBehavior
virtual int[]	HandledBlocks `[get]`
SubsystemTerrain	SubsystemTerrain `[get, set]`
属性继承自 GameEntitySystem.Subsystem
Project	Project `[get]`
ValuesDictionary	ValuesDictionary `[get]`
属性继承自 Game.IUpdateable
float	FloatUpdateOrder `[get]`

额外继承的成员函数
静态 Public 属性继承自 Game.SubsystemFluidBlockBehavior
static Point2[]	m_sideNeighbors = [new(-1, 0), new(1, 0), new(0, -1), new(0, 1)]
包函数继承自 GameEntitySystem.Subsystem
void	DisposeInternal ()
