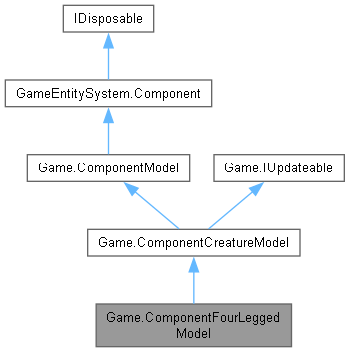

类 Game.ComponentFourLeggedModel 继承关系图:

[图例]

Game.ComponentFourLeggedModel 的协作图:

[图例]

Public 类型
enum	Gait { Walk , Trot , Canter }

Public 成员函数

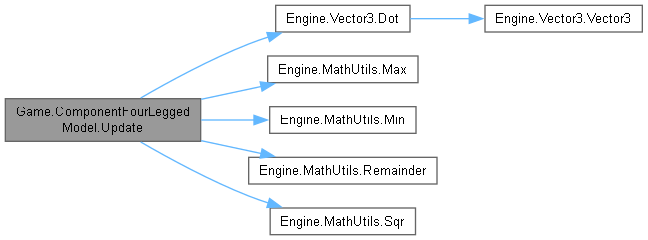

override void	Update (float dt)

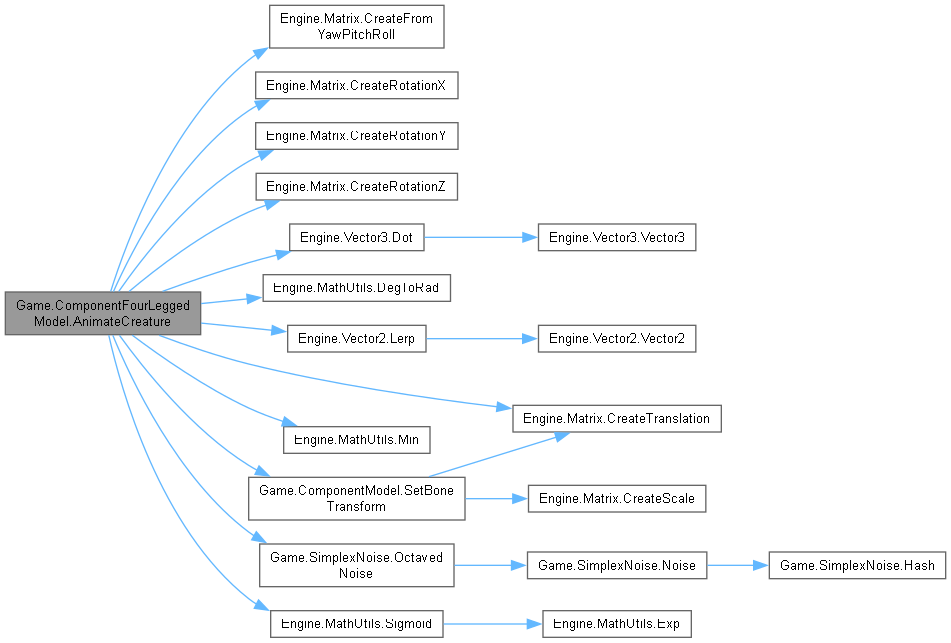

override void	AnimateCreature ()
override void	Load (ValuesDictionary valuesDictionary, IdToEntityMap idToEntityMap)
override void	SetModel (Model model)
Public 成员函数继承自 Game.ComponentCreatureModel
override void	Animate ()
void	AnimateCreature ()
override void	OnEntityAdded ()
virtual Vector3	CalculateEyePosition ()
virtual Quaternion	CalculateEyeRotation ()
Public 成员函数继承自 Game.ComponentModel
virtual ? Matrix	GetBoneTransform (int boneIndex)
virtual void	SetBoneTransform (int boneIndex, Matrix? transformation)
virtual void	CalculateAbsoluteBonesTransforms (Camera camera)
virtual void	CalculateIsVisible (Camera camera)
virtual void	DrawExtras (Camera camera)
override void	Load (ValuesDictionary valuesDictionary, IdToEntityMap idToEntityMap)
virtual void	ProcessBoneHierarchy (ModelBone modelBone, Matrix currentTransform, Matrix[] transforms)
Public 成员函数继承自 GameEntitySystem.Component
virtual IEnumerable< Entity >	GetOwnedEntities ()
virtual void	OnEntityRemoved ()
virtual void	Save (ValuesDictionary valuesDictionary, EntityToIdMap entityToIdMap)
virtual void	Dispose ()
virtual void	InheritFromComponent (Component baseComponent)
virtual void	Initialize (Entity entity, ValuesDictionary valuesDictionary)

Public 属性
SubsystemAudio	m_subsystemAudio
SubsystemSoundMaterials	m_subsystemSoundMaterials
ModelBone	m_bodyBone
ModelBone	m_neckBone
ModelBone	m_headBone
ModelBone	m_leg1Bone
ModelBone	m_leg2Bone
ModelBone	m_leg3Bone
ModelBone	m_leg4Bone
float	m_walkAnimationSpeed
float	m_canterLegsAngleFactor
float	m_walkFrontLegsAngle
float	m_walkHindLegsAngle
float	m_walkBobHeight
bool	m_moveLegWhenFeeding
bool	m_canCanter
bool	m_canTrot
bool	m_useCanterSound
Gait	m_gait
float	m_feedFactor
float	m_buttFactor
float	m_buttPhase
float	m_footstepsPhase
float	m_legAngle1
float	m_legAngle2
float	m_legAngle3
float	m_legAngle4
float	m_headAngleY
Public 属性继承自 Game.ComponentCreatureModel
SubsystemTime	m_subsystemTime
SubsystemGameInfo	m_subsystemGameInfo
ComponentCreature	m_componentCreature
Vector3?	m_eyePosition
Quaternion?	m_eyeRotation
float	m_injuryColorFactor
Vector3	m_randomLookPoint
Random	m_random = new()
Public 属性继承自 Game.ComponentModel
SubsystemSky	m_subsystemSky
bool	IsSet
bool	Animated
bool	IsExtrasDrawn
ComponentFrame	m_componentFrame
Model	m_model
Matrix?[]	m_boneTransforms
float	m_boundingSphereRadius
Public 属性继承自 GameEntitySystem.Component
Entity	m_entity
ValuesDictionary	m_valuesDictionary

属性
override float	AttackPhase `[get, set]`
override float	AttackFactor `[get, set]`
属性继承自 Game.ComponentCreatureModel
float	Bob `[get, set]`
float	MovementAnimationPhase `[get, set]`
float	DeathPhase `[get, set]`
Vector3	DeathCauseOffset `[get, set]`
Vector3?	LookAtOrder `[get, set]`
bool	LookRandomOrder `[get, set]`
float	HeadShakeOrder `[get, set]`
bool	AttackOrder `[get, set]`
bool	FeedOrder `[get, set]`
bool	RowLeftOrder `[get, set]`
bool	RowRightOrder `[get, set]`
float	AimHandAngleOrder `[get, set]`
Vector3	InHandItemOffsetOrder `[get, set]`
Vector3	InHandItemRotationOrder `[get, set]`
bool	IsAttackHitMoment `[get, set]`
virtual float	AttackPhase `[get, set]`
virtual float	AttackFactor `[get, set]`
Vector3	EyePosition `[get]`
Quaternion	EyeRotation `[get]`
UpdateOrder	UpdateOrder `[get]`
属性继承自 Game.ComponentModel
Vector3	ModelOffset `[get, set]`
	模型偏移
float	Transparent `[get, set]`
	模型透明度
float	ModelScale `[get, set]`
	模型大小缩放
string	TextureRoute `[get, set]`
	纹理路径
string	ModelRoute `[get, set]`
	模型路径
float?	Opacity `[get, set]`
Vector3?	DiffuseColor `[get, set]`
Vector4?	EmissionColor `[get, set]`
Model	Model `[get, set]`
Texture2D	TextureOverride `[get, set]`
virtual Func< bool >	OnAnimate `[get, set]`
bool	CastsShadow `[get, set]`
int	PrepareOrder `[get, set]`
virtual ModelRenderingMode	RenderingMode `[get, set]`
int[]	MeshDrawOrders `[get, set]`
bool	IsVisibleForCamera `[get, set]`
Matrix[]	AbsoluteBoneTransformsForCamera `[get, set]`
属性继承自 GameEntitySystem.Component
ValuesDictionary	ValuesDictionary `[get]`
Entity	Entity `[get]`
Project	Project `[get]`
bool	IsAddedToProject `[get]`
属性继承自 Game.IUpdateable
float	FloatUpdateOrder `[get]`
