Engine.Graphics.BaseTexturedBatch

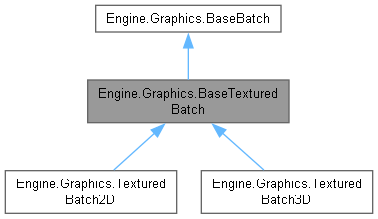

类 Engine.Graphics.BaseTexturedBatch 继承关系图:

Engine.Graphics.BaseTexturedBatch 的协作图:

Public 成员函数
override bool	IsEmpty ()
override void	Clear ()
virtual void	Flush (Matrix matrix, bool clearAfterFlush=true)
override void	Flush (Matrix matrix, Vector4 color, bool clearAfterFlush=true)
void	FlushWithDeviceState (bool useAlphaTest, Texture2D texture, SamplerState samplerState, Matrix matrix, Vector4 color, bool clearAfterFlush=true)
void	FlushWithDeviceState (Shader shader, bool clearAfterFlush=true)
void	TransformTriangles (Matrix matrix, int start=0, int end=-1)
void	TransformTrianglesColors (Color color, int start=0, int end=-1)
Public 成员函数 继承自 Engine.Graphics.BaseBatch
bool	IsEmpty ()
void	Clear ()
void	Flush (Matrix matrix, Vector4 color, bool clearAfterFlush=true)

Public 属性
readonly DynamicArray< VertexPositionColorTexture >	TriangleVertices = []
readonly DynamicArray< int >	TriangleIndices = []

静态 Public 属性
static UnlitShader	m_shader = new(true, true, false, false)
static UnlitShader	m_shaderAlphaTest = new(true, true, false, true)

属性
Texture2D	Texture [get, set]
bool	UseAlphaTest [get, set]
SamplerState	SamplerState [get, set]
属性 继承自 Engine.Graphics.BaseBatch
int	Layer [get, set]
DepthStencilState	DepthStencilState [get, set]
RasterizerState	RasterizerState [get, set]
BlendState	BlendState [get, set]

详细描述

在文件 BaseTexturedBatch.cs 第 2 行定义.

成员函数说明

Clear()

override void Engine.Graphics.BaseTexturedBatch.Clear

(

)

在文件 BaseTexturedBatch.cs 第 19 行定义.

这是这个函数的调用关系图:

Flush() [1/2]

virtual void Engine.Graphics.BaseTexturedBatch.Flush ( Matrix matrix, bool clearAfterFlush = true )

virtual

在文件 BaseTexturedBatch.cs 第 24 行定义.

函数调用图:

这是这个函数的调用关系图:

Flush() [2/2]

override void Engine.Graphics.BaseTexturedBatch.Flush	(	Matrix	matrix,
		Vector4	color,
		bool	clearAfterFlush = true )

在文件 BaseTexturedBatch.cs 第 28 行定义.

函数调用图:

FlushWithDeviceState() [1/2]

void Engine.Graphics.BaseTexturedBatch.FlushWithDeviceState	(	bool	useAlphaTest,
		Texture2D	texture,
		SamplerState	samplerState,
		Matrix	matrix,
		Vector4	color,
		bool	clearAfterFlush = true )

在文件 BaseTexturedBatch.cs 第 35 行定义.

函数调用图:

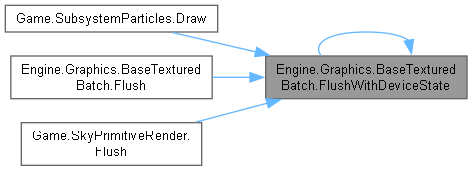

这是这个函数的调用关系图:

FlushWithDeviceState() [2/2]

void Engine.Graphics.BaseTexturedBatch.FlushWithDeviceState	(	Shader	shader,
		bool	clearAfterFlush = true )

在文件 BaseTexturedBatch.cs 第 58 行定义.

函数调用图:

IsEmpty()

override bool Engine.Graphics.BaseTexturedBatch.IsEmpty

(

)

在文件 BaseTexturedBatch.cs 第 17 行定义.

TransformTriangles()

void Engine.Graphics.BaseTexturedBatch.TransformTriangles	(	Matrix	matrix,
		int	start = 0,
		int	end = -1 )

在文件 BaseTexturedBatch.cs 第 82 行定义.

函数调用图:

这是这个函数的调用关系图:

TransformTrianglesColors()

void Engine.Graphics.BaseTexturedBatch.TransformTrianglesColors	(	Color	color,
		int	start = 0,
		int	end = -1 )

在文件 BaseTexturedBatch.cs 第 92 行定义.

这是这个函数的调用关系图:

类成员变量说明

m_shader

UnlitShader Engine.Graphics.BaseTexturedBatch.m_shader = new(true, true, false, false)

static

在文件 BaseTexturedBatch.cs 第 3 行定义.

m_shaderAlphaTest

UnlitShader Engine.Graphics.BaseTexturedBatch.m_shaderAlphaTest = new(true, true, false, true)

static

在文件 BaseTexturedBatch.cs 第 5 行定义.

TriangleIndices

readonly DynamicArray<int> Engine.Graphics.BaseTexturedBatch.TriangleIndices = []

在文件 BaseTexturedBatch.cs 第 9 行定义.

TriangleVertices

readonly DynamicArray<VertexPositionColorTexture> Engine.Graphics.BaseTexturedBatch.TriangleVertices = []

在文件 BaseTexturedBatch.cs 第 7 行定义.

属性说明

SamplerState

SamplerState Engine.Graphics.BaseTexturedBatch.SamplerState

getset

在文件 BaseTexturedBatch.cs 第 15 行定义.

Texture

Texture2D Engine.Graphics.BaseTexturedBatch.Texture

getset

在文件 BaseTexturedBatch.cs 第 11 行定义.

UseAlphaTest

bool Engine.Graphics.BaseTexturedBatch.UseAlphaTest

getset

在文件 BaseTexturedBatch.cs 第 13 行定义.

---

该类的文档由以下文件生成:

• E:/sc/doxygen/SurvivalcraftApi 1.8.2.3/Engine/Engine.Graphics/BaseTexturedBatch.cs
