Game.BasePerspectiveCamera

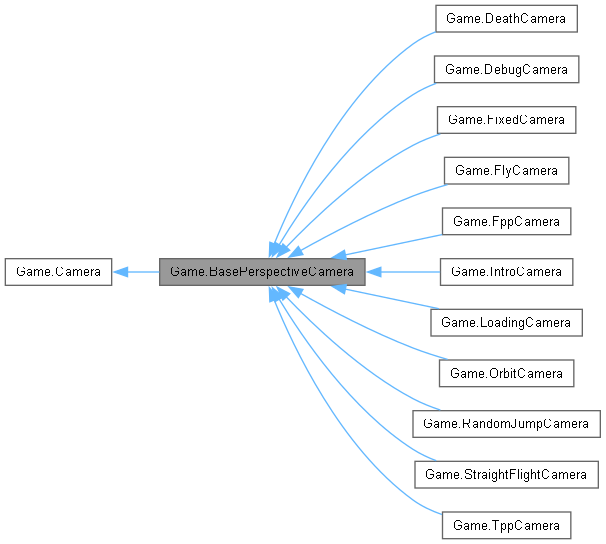

类 Game.BasePerspectiveCamera 继承关系图:

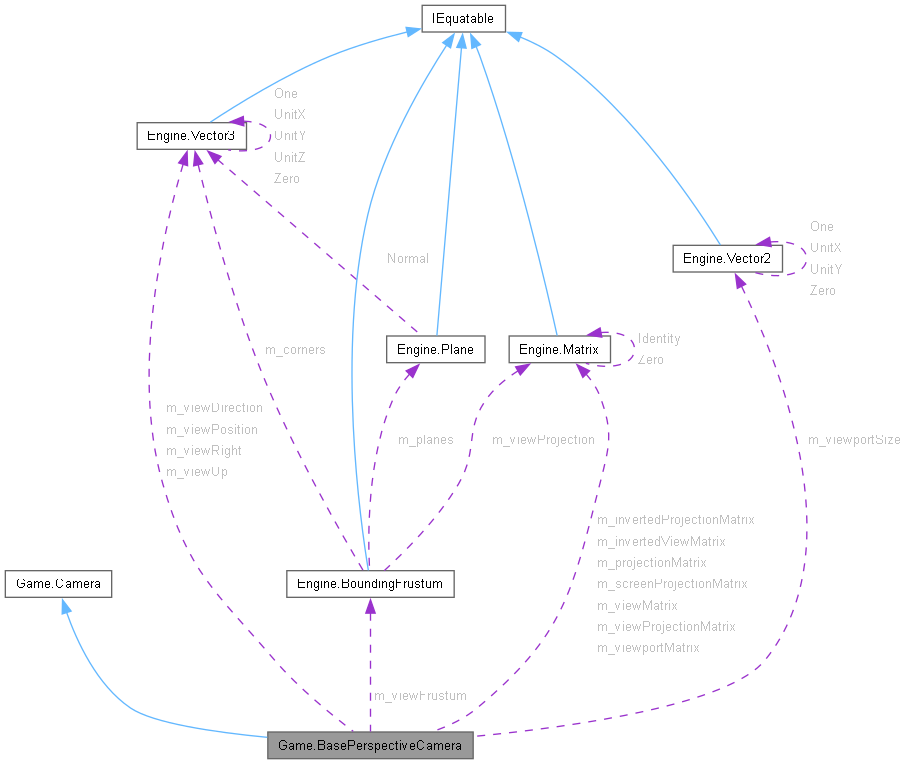

Game.BasePerspectiveCamera 的协作图:

Public 成员函数
override void	PrepareForDrawing ()
	BasePerspectiveCamera (GameWidget gameWidget)
void	SetupPerspectiveCamera (Vector3 position, Vector3 direction, Vector3 up)
virtual Matrix	CalculateBaseProjectionMatrix ()
	计算基础投影矩阵，创建透视视野
Public 成员函数 继承自 Game.Camera
	Camera (GameWidget gameWidget)
Vector3	WorldToScreen (Vector3 worldPoint, Matrix worldMatrix)
Vector3	ScreenToWorld (Vector3 screenPoint, Matrix worldMatrix)
virtual void	Activate (Camera previousCamera)
void	Update (float dt)

Public 属性
Vector3	m_viewPosition
Vector3	m_viewDirection
Vector3	m_viewUp
Vector3	m_viewRight
Matrix?	m_viewMatrix
Matrix?	m_invertedViewMatrix
Matrix?	m_projectionMatrix
Matrix?	m_invertedProjectionMatrix
Matrix?	m_screenProjectionMatrix
Matrix?	m_viewProjectionMatrix
Vector2?	m_viewportSize
Matrix?	m_viewportMatrix
BoundingFrustum	m_viewFrustum
bool	m_viewFrustumValid

属性
override Vector3	ViewPosition [get]
override Vector3	ViewDirection [get]
override Vector3	ViewUp [get]
override Vector3	ViewRight [get]
override Matrix	ViewMatrix [get]
override Matrix	InvertedViewMatrix [get]
override Matrix	ProjectionMatrix [get]
override Matrix	ScreenProjectionMatrix [get]
override Matrix	InvertedProjectionMatrix [get]
override Matrix	ViewProjectionMatrix [get]
override Vector2	ViewportSize [get]
override Matrix	ViewportMatrix [get]
override BoundingFrustum	ViewFrustum [get]
属性 继承自 Game.Camera
GameWidget	GameWidget [get, set]
VrEye?	Eye [get, set]
Vector3	ViewPosition [get]
Vector3	ViewDirection [get]
Vector3	ViewUp [get]
Vector3	ViewRight [get]
Matrix	ViewMatrix [get]
Matrix	InvertedViewMatrix [get]
Matrix	ProjectionMatrix [get]
Matrix	ScreenProjectionMatrix [get]
Matrix	InvertedProjectionMatrix [get]
Matrix	ViewProjectionMatrix [get]
Vector2	ViewportSize [get]
Matrix	ViewportMatrix [get]
BoundingFrustum	ViewFrustum [get]
bool	UsesMovementControls [get]
bool	IsEntityControlEnabled [get]

详细描述

在文件 BasePerspectiveCamera.cs 第 5 行定义.

构造及析构函数说明

BasePerspectiveCamera()

Game.BasePerspectiveCamera.BasePerspectiveCamera

(

GameWidget

gameWidget

)

在文件 BasePerspectiveCamera.cs 第 188 行定义.

成员函数说明

CalculateBaseProjectionMatrix()

virtual Matrix Game.BasePerspectiveCamera.CalculateBaseProjectionMatrix ( )

virtual

计算基础投影矩阵，创建透视视野

返回

在文件 BasePerspectiveCamera.cs 第 201 行定义.

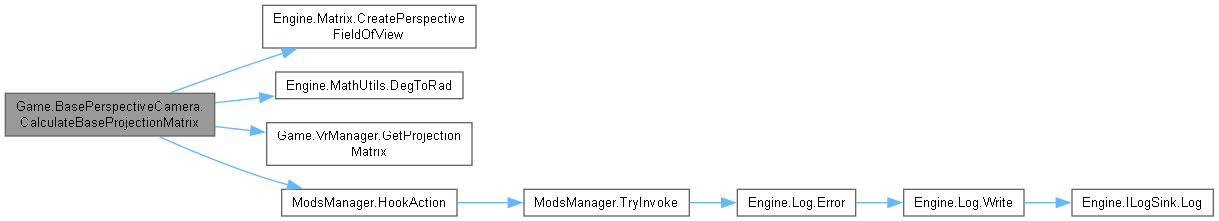

函数调用图:

PrepareForDrawing()

override void Game.BasePerspectiveCamera.PrepareForDrawing ( )

virtual

重载 Game.Camera .

在文件 BasePerspectiveCamera.cs 第 176 行定义.

SetupPerspectiveCamera()

void Game.BasePerspectiveCamera.SetupPerspectiveCamera	(	Vector3	position,
		Vector3	direction,
		Vector3	up )

在文件 BasePerspectiveCamera.cs 第 190 行定义.

函数调用图:

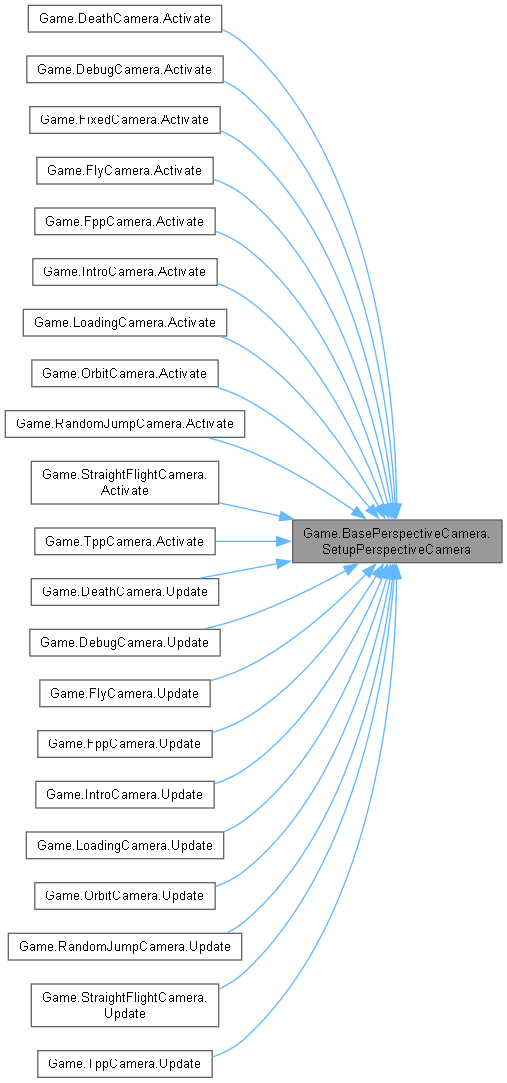

这是这个函数的调用关系图:

类成员变量说明

m_invertedProjectionMatrix

Matrix? Game.BasePerspectiveCamera.m_invertedProjectionMatrix

在文件 BasePerspectiveCamera.cs 第 20 行定义.

m_invertedViewMatrix

Matrix? Game.BasePerspectiveCamera.m_invertedViewMatrix

在文件 BasePerspectiveCamera.cs 第 16 行定义.

m_projectionMatrix

Matrix? Game.BasePerspectiveCamera.m_projectionMatrix

在文件 BasePerspectiveCamera.cs 第 18 行定义.

m_screenProjectionMatrix

Matrix? Game.BasePerspectiveCamera.m_screenProjectionMatrix

在文件 BasePerspectiveCamera.cs 第 22 行定义.

m_viewDirection

Vector3 Game.BasePerspectiveCamera.m_viewDirection

在文件 BasePerspectiveCamera.cs 第 8 行定义.

m_viewFrustum

BoundingFrustum Game.BasePerspectiveCamera.m_viewFrustum

在文件 BasePerspectiveCamera.cs 第 30 行定义.

m_viewFrustumValid

bool Game.BasePerspectiveCamera.m_viewFrustumValid

在文件 BasePerspectiveCamera.cs 第 32 行定义.

m_viewMatrix

Matrix? Game.BasePerspectiveCamera.m_viewMatrix

在文件 BasePerspectiveCamera.cs 第 14 行定义.

m_viewportMatrix

Matrix? Game.BasePerspectiveCamera.m_viewportMatrix

在文件 BasePerspectiveCamera.cs 第 28 行定义.

m_viewportSize

Vector2? Game.BasePerspectiveCamera.m_viewportSize

在文件 BasePerspectiveCamera.cs 第 26 行定义.

m_viewPosition

Vector3 Game.BasePerspectiveCamera.m_viewPosition

在文件 BasePerspectiveCamera.cs 第 6 行定义.

m_viewProjectionMatrix

Matrix? Game.BasePerspectiveCamera.m_viewProjectionMatrix

在文件 BasePerspectiveCamera.cs 第 24 行定义.

m_viewRight

Vector3 Game.BasePerspectiveCamera.m_viewRight

在文件 BasePerspectiveCamera.cs 第 12 行定义.

m_viewUp

Vector3 Game.BasePerspectiveCamera.m_viewUp

在文件 BasePerspectiveCamera.cs 第 10 行定义.

属性说明

InvertedProjectionMatrix

override Matrix Game.BasePerspectiveCamera.InvertedProjectionMatrix

get

在文件 BasePerspectiveCamera.cs 第 101 行定义.

InvertedViewMatrix

override Matrix Game.BasePerspectiveCamera.InvertedViewMatrix

get

在文件 BasePerspectiveCamera.cs 第 52 行定义.

ProjectionMatrix

override Matrix Game.BasePerspectiveCamera.ProjectionMatrix

get

在文件 BasePerspectiveCamera.cs 第 62 行定义.

ScreenProjectionMatrix

override Matrix Game.BasePerspectiveCamera.ScreenProjectionMatrix

get

在文件 BasePerspectiveCamera.cs 第 82 行定义.

ViewDirection

override Vector3 Game.BasePerspectiveCamera.ViewDirection

get

在文件 BasePerspectiveCamera.cs 第 36 行定义.

ViewFrustum

override BoundingFrustum Game.BasePerspectiveCamera.ViewFrustum

get

在文件 BasePerspectiveCamera.cs 第 161 行定义.

ViewMatrix

override Matrix Game.BasePerspectiveCamera.ViewMatrix

get

在文件 BasePerspectiveCamera.cs 第 42 行定义.

ViewportMatrix

override Matrix Game.BasePerspectiveCamera.ViewportMatrix

get

在文件 BasePerspectiveCamera.cs 第 141 行定义.

ViewportSize

override Vector2 Game.BasePerspectiveCamera.ViewportSize

get

在文件 BasePerspectiveCamera.cs 第 126 行定义.

ViewPosition

override Vector3 Game.BasePerspectiveCamera.ViewPosition

get

在文件 BasePerspectiveCamera.cs 第 34 行定义.

ViewProjectionMatrix

override Matrix Game.BasePerspectiveCamera.ViewProjectionMatrix

get

在文件 BasePerspectiveCamera.cs 第 110 行定义.

ViewRight

override Vector3 Game.BasePerspectiveCamera.ViewRight

get

在文件 BasePerspectiveCamera.cs 第 40 行定义.

ViewUp

override Vector3 Game.BasePerspectiveCamera.ViewUp

get

在文件 BasePerspectiveCamera.cs 第 38 行定义.

---

该类的文档由以下文件生成:

• E:/sc/doxygen/SurvivalcraftApi 1.8.2.3/Survivalcraft.Windows/Game/BasePerspectiveCamera.cs
